A Sitemap
plot is a hard copy,
graphic map tailored to your needs. The mapping is large scale and
site-centred. Produced from the Ordnance Survey topographic database,
Sitemap can deliver customised graphic plots for anywhere in Great
Britain. Sitemap has a wide variety of uses including:
 |
Project planning |
|
Construction |
|
Site location |
|
Planning applications |
|
Conveyancing |
|
Surveying |
|
Land and estate management |
|
Environmental research |
|
Mapping for CAP and similar
schemes, to include area measurement reports |
The very latest available survey
information.
|
Ordnance Survey make nearly
5,000 updates everyday, so you can be sure of getting the very latest map |
Nationwide coverage
|
From city centres to upland
moors, Sitemap covers the length and breadth of Great |
Incredible detail and accuracy
|
You get the detail you need
from large scale mapping, with the precision you would expect from the country's
leading cartographers |
Site centred
|
By placing your site at the
centre of the plan, you see your area relative to its surroundings, plus
detail no longer falls across sheet edges. |
|
It is also cost effective
because you only pay for the area you want |
Customised mapping
|
Sitemap can be delivered in a
wide range of paper or film sizes. Utilising the National Topographic
Database, a plot can be produced at any scale, from 1:200 to 1:10 000
(original scales are 1:1250 in urban areas, 1:2500 in rural areas and 1:10
000 in moorland areas). |
|
The plot size is only limited
to the paper or film width and to a maximum length of 3 metres. It can
also be rotated to follow linear features |
| Pricing is infinitely variable,
calculated from both the area of ground covered and the original survey
scale of the mapping. For example, the minimum price of £25.00
would purchase approximately 8.7 hectares of Urban data or 31 hectares
of Rural data. |
| Full colour mapping is also now available at a
small charge of £3.00.
|
|
If required, Sitemap can also
be supplied as traditional National Grid sheets, for archive or library
purposes, 1km x 1km in rural areas, 500m x 500m in urban areas |
The area measurement service
|
This service enables you to
select the area to be measured, this will be highlighted on your plan and
will be accompanied by a report, detailing the land parcel reference plus
area measurement in hectares and acres |
The Map Shop offers a high quality
one-to-one service to ensure your map is presented and delivered to meet your
needs.
|
Your Sitemap Plot can be
ordered by:
|
|

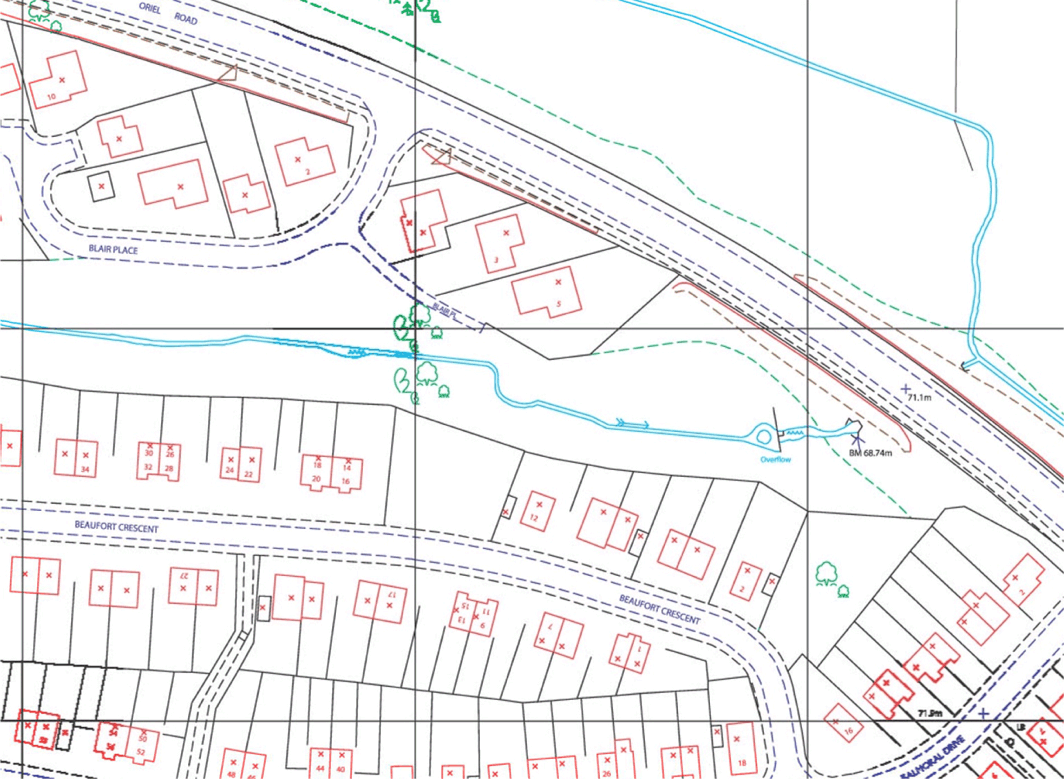

Sitemap Data is digital
mapping data you control. Using computer aided design (CAD) systems,
you have the power to customise the most detailed large-scale data of
Great Britain in site centred form. If you are an architect,
engineer, constructor or surveyor, Sitemap Data has a great variety of
uses:
| Project planning and design |
| Site maps |
| Feasibility studies |
| Planning applications |
| Location mapping |
| Illustrating presentations and reports |
The very latest available survey
information
| Ordnance Survey make nearly 5,000
updates everyday, so you can be sure of getting the very latest plan. |
Nationwide coverage
|
From city centres to upland
moors, Sitemap covers the length and breadth of Great |
Incredible detail and accuracy
|
You get the detail you need
from large scale mapping, with the precision you would expect from the country's
leading cartographers |
Site-centred
|
By placing your focal
point at the centre of the plan, you see your site relative to the
surrounding area, and you only pay for the area you want |
|
Data can of course be
rotated to follow linear features such as roads or railways |
Customised mapping
|
Sitemap Data comes in a
Data Exchange Format (DXF) file, which you tailor to you needs.
Viewed on screen it can be manipulated, merged with other drawings,
then plotted onto paper or film. With the appropriate software,
Sitemap Data can also be used to plot at a range of scales or
changed to add other relevant information
|
|
Attributes, additional
information about a geographical feature, can also be stored and
linked to the feature |
|
Up to 60 layers
 |
With so many
variables available, you can remove features you do not need,
creating a clearer and more focused way of working |
|
|
Levelling and height
information
|
With the relevant
software Sitemap Data allows you to generate a third dimension,
over and above basic easting and northing co-ordinates |
|
|
CAD compatible
|
Because Sitemap
Data is supplied in DXF Level 1, it is compatible with most
popular CAD systems and being vector data (simply a list of co-ordinates)
files are small, hence quick to send by e-mail |
|
Pricing is infinitely
variable, calculated from both the area of ground covered and the original
survey scale of the mapping.
|
For example, the minimum
charge of £30.00 plus VAT buys 3.2 hectares of urban information, but
10 hectares of rural survey. |
|
Sitemap Data comes as
standard with
a one year copyright licence and comprehensive user guide
|
|
Your DXF data can be
supplied by e-mail or CD-Rom. |
The Map Shop offers a high quality
one-to-one service to ensure your map is presented and delivered to meet your
needs.
|
Your Sitemap Data can be
ordered by:
|
|
